Mission Magnum I Pump Replacement Parts
Kenda products and components are designed to be 100% interchangeable with industry-leading brands, ensuring seamless integration and reduced downtime.

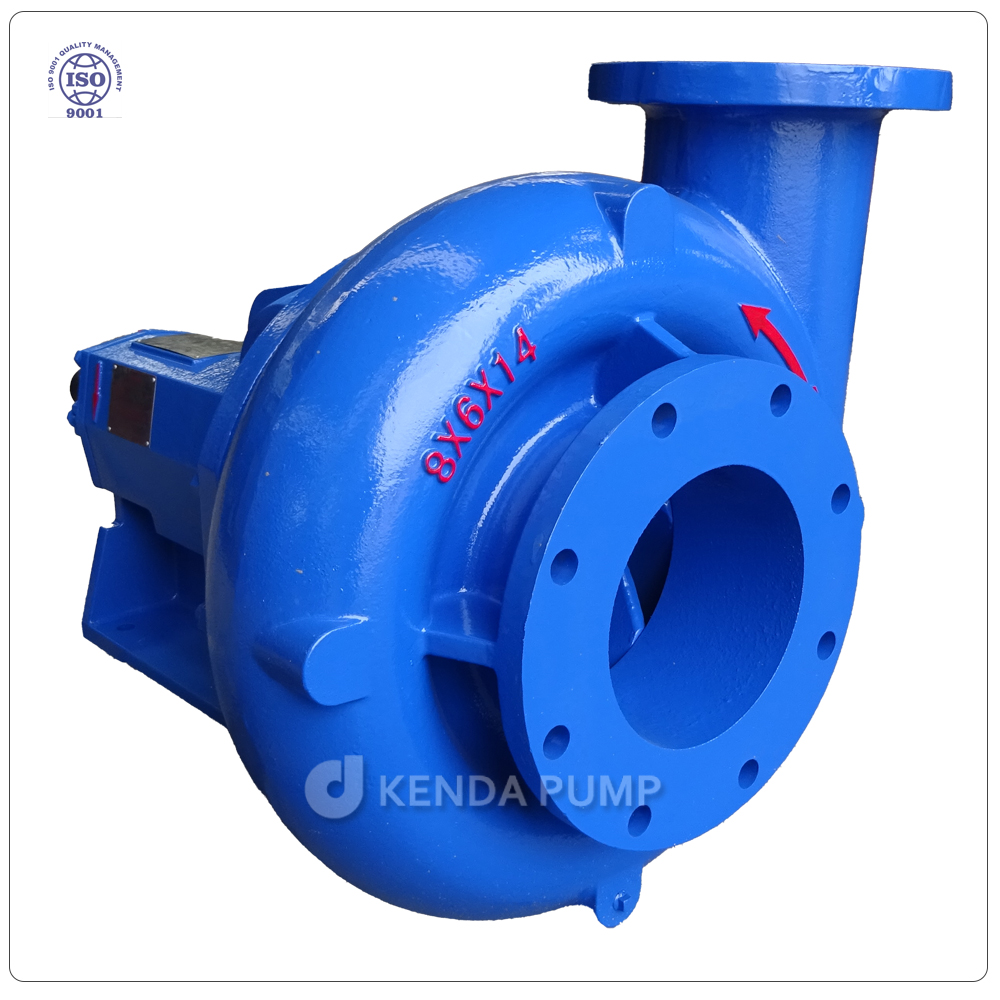

KENDA Centrifugal Sand Pump Parts | High-Performance Centrifugal Pumps & Premium Replacement Parts
At KENDA, we provide more than just equipment—we deliver fluid handling solutions engineered for the most demanding environments. Whether you need a bare pump, a complete pump package, or expert refurbishment services, KENDA is your trusted partner for reliability and precision.
Universal Compatibility
Our products and components are designed to be 100% interchangeable with industry-leading brands, ensuring seamless integration and reduced downtime. We support equipment originally sourced from:
· NOV Mission Magnum / Halco / O’Drill MCM
· Forum Energy / Double Life / Southwest
· ABCO / Mesco / TSC / Midcontinents / Dupagro
· All major Chinese Mission-style pump manufacturers
Comprehensive Repair & Component Solutions
We offer a full suite of high-durability replacement parts and repair services, engineered to withstand the most abrasive and corrosive environments:
Component | Material & Specifications |
Casing & Impeller & Stuffing Box | High-Chrome Alloy (26%), Hard Iron, SS304, SS316 Stainless Steel |
Bearings | Genuine SKF Bearings for high-load stability |
Shaft | 40Cr Heat-Treated Steel for superior strength |
Shaft Sleeve | Ceramic-Coated or Stainless Steel shaft sleeves to minimize wear. |
Mechanical Seal | Premium Tungsten Carbide (TC) |
Seals & O-Rings | High-grade NBR, Viton, Teflon, or Graphite packing |
Housing Gaskets | Heavy-duty Fiber housing gaskets |
Typical Configurations:
3x2x13 6x5x14
4x3x13 8x6x11
5x4x14 8x6x14
6x5x11 10x8x14
Kenda Centrifugal Sand Pump Parts List
Item | Qty | OEM Part No. | Description | Material | Weight (kg) | ||
1* | 1 | See below | Casing | ||||
1A | 1 | 10399-46-1 | Gasket,casing | Vellumoid | 0.01 | ||
1B | 12 | 3932-61 | Nut,casing | Stl | 0.05 | ||
1C | 12 | 3862-76 | Stud,casing | Stl | 0.16 | ||
1D | 1 | 8505-04-01 | Plug,Casing Drain | Stl | 0.03 | ||
1E | 1 | 8505-04-01 | Plug,flush line | Stl | 0.03 | ||
2* | 1 | See below | Impeller | ||||
2A | 1 | 19110-72 | Seal,impeller | Viton | 0.002 | ||
2B | 1 | 7300239 | Washer,impeller | Stl | 0.02 | ||
2C | 1 | 7415648 | Bolt,impeler lock | Stl | 0.15 | ||
3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | Hard Iron | 20 | ||
3*& | 1 | 20614-01-30 | Stuffing box,packed | Hard Iron | 20 | ||
3A | 2 | 3861-117 | Bolt,stuffing box | Stl | 0.05 | ||
4 | 1 | 20622A | Gland assy,packing | Stl 304 | 1 | ||
5A# | 1 | 22451-1 | Seal,mechanical | Tung/Tung | 1 | ||
5A# | 1 | 648402600 | Packing, Shaft - M.S. Backup | Graphite Acrylic | 0.3 | ||
5A# | Option | 648402600 | Packing, Shaft - M.S. Backup | Kevlar | 0.3 | ||
5A | 1 | 25014-04M-B | Packing, Shaft - w/latern ring | Graphite/Acrylic | 0.5 | ||
5A | Option | 250147-04M-D | Packing, Shaft - w/latern ring | Teflon, White | 0.5 | ||
5A# | Option | 25014-04M-C | Packing, Shaft - w/latern ring | Kevlar | 0.5 | ||
6 | 2 | B3701A | Bolt assy,gland | Stl 304 | 0.15 | ||
7 | 1 | 20612-02-33 | Shaft | 42CrMo | 17 | ||
7A | 1 | 20943-04A | Sleeve,shaft | 38CrMoAl | 1 | ||
7B | 1 | 4371-5-21 | Key,shaft | Stl | 0.11 | ||
7C | 1 | 23444-01-72 | Seal,shaft sleeve | Viton | 0.005 | ||
8 | 1 | 22210-1A | Deflector assembly | Composite | 0.4 | ||
9 | 1 | 20618-12-1 | Frame,grease lubricated | Cast iron | 80 | ||
9C | 1 | 8505-04-01 | Plug, Frame Drain | Stl | 0.033 | ||
9D | 1 | 8267-01 | Breather | Stl | 0.1 | ||
9G | 3 | 2538-1H | Bolt,casing jack | Stl | 0.16 | ||
10A | 1 | 20626 | Cover,inboard bearing | Iron | 2.6 | ||
10B | 1 | 20625 | Gasket,I.B.Brg.Cover | Vegetable fiber | 0.01 | ||
10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | Buna-n | 0.06 | ||
10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | Stl | 0.03 | ||
10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | Stl | 0.07 | ||
10F | 1 | 20620-01 | Exclusion Seal, I.B. Brg. Cvr. | Buna-n | 0.01 | ||
10G | 1 | 21641-01 | Grease fitting | Stl | 0.07 | ||
10H | 1 | 648411908 | Grease fitting | Stl | 0.07 | ||
11 | 1 | 661 00901 OA | Bearing, Inboard & Spacer | Roller | 2.1 | ||
11 | 1 | 20615-1 | Bearing,inboard | Vendor | 2.1 | ||
12 | 1 | 20624-01-01 | Housing,O.B.bearing | Iron | 6 | ||
12A | 1 | 7496-253 | Seal, O.B.Brg.housing | Buna-n | 0.01 | ||
12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | Stl | 0.05 | ||
12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | Stl | 0.016 | ||
13 | 1 | 20617A | Cover,O.B.Bearing | Iron | 1.8 | ||
13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | Brass | 0.01 | ||
13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | Buna-n | 0.001 | ||
13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | Buna-n | 0.04 | ||
13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | Stl | 0.025 | ||
14 | 2 | 20616-1 | Bearing, O.B. | Vendor | 1.5 | ||
14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | Stl | 0.01 | ||
14B | 1 | 6123-4 | Locknut, O.B.Bearing | Stl | 0.22 | ||
Casings-includes studs,nuts & gasket | |||||||
1* | 1 | 19203-01-30A | Casing,3×2×13 | Hard Iron | 55 | ||
1* | 1 | 19205-01-30A | Casing,4×3×13 | Hard Iron | 57 | ||
1* | 1 | 19222-01-30A | Casing, 5×4×14 | Hard Iron | 88 | ||
1* | 1 | 19122-01-30A | Casing,6×5×11 | Hard Iron | 90 | ||
1* | 1 | 19123-01-30A | Casing, 6×5×14 | Hard Iron | 95 | ||
1* | 1 | 19763-01-30A | Casing, 8×6×11 | Hard Iron | 97 | ||
1* | 1 | 19117-01-30A | Casing,8×6×14 | Hard Iron | 125 | ||
1* | 1 | 20937-01-30A | Casing,10×8×14 | Hard Iron | 155 | ||
Impellers | |||||||
2* | 1 | 19204-XX-30 | Impeller,3×2×13 | Hard Iron | 9 | ||
2* | 1 | 19206-XX-30 | Impeller,4×3×13 | Hard Iron | 12.5 | ||
2* | 1 | 19224-XX-30 | Impeller,5×4×14 | Hard Iron | 16 | ||
2* | 1 | 19121-XX-30 | Impeller,6×5×11 | Hard Iron | 14 | ||
2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | Hard Iron | 18 | ||
2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | Hard Iron | 18 | ||
2* | 1 | 19116-A0-30 | Impeller,8×6×14 | Hard Iron | 20 | ||
2* | 1 | 21867-XX-30 | Impeller,10×8×14 | Hard Iron | 20 | ||
Note：1. XX－Impeller code－Firsr X equals diameter of impeller in inches minus 4.Therefore 10″=6,9″=5 etc…14″ use lettet A;
2. Second X equals frational data in1/8′s.Therefore 1/8″=1, 1/4″=2 ,etc…Thus a 10.5″impeller is coded as 64, 12″impeller is coded as 80, 13.25″impeller is coded as 92 etc…
3. YYY－the metric diameter of impeller，therefore 12″ is coede as 305mm，11″ is coded as 280mm
Application:
• Chemical Transfer & Small Rigs | • High-Flow Fluid Handling | • High-Volume Waste Management | • Sugar processing |
• Supercharging & Desanding | • Medium Capacity Slurry | • Mine de-watering | • Lime slurries |
• Mud Mixing & Solid Control | • Main Rig Pump | • Large Capacity Tailings Pump | • Mineral Processing |
Disclaimer: All brand names and trademarks (such as NOV Mission Magnum, Halco, etc.) are the property of their respective owners. Reference to these brands is for compatibility and identification purposes only. KENDA is not an authorized distributor or representative of these manufacturers. Our products are high-quality, non-OEM replacement parts designed to be 100% interchangeable with the original equipment.
